Compact design
Ceramic package and metal lid assures extreme accuracy and high reliability by electron beam sealing
Accommodates high precision frequency and temperature characteristics
Lead-free soldering is available
FCX-06贴片晶振特性:
Compact design
Ceramic package and metal lid assures extreme accuracy and high reliability by electron beam sealing
Accommodates high precision frequency and temperature characteristics
Lead-free soldering is available
FCX-06贴片晶振规格:
型号 | FCX-06 |
频率 | 18MHz~80MHz |
频率容差 | ±10ppm,±20ppm,±30ppm,±50ppm, ±100ppm |
负载容量 | 5pF, 6pF, 7pF |
工作温度范围 | -40~+85℃ |
储存温度范围 | -40~+85℃ |

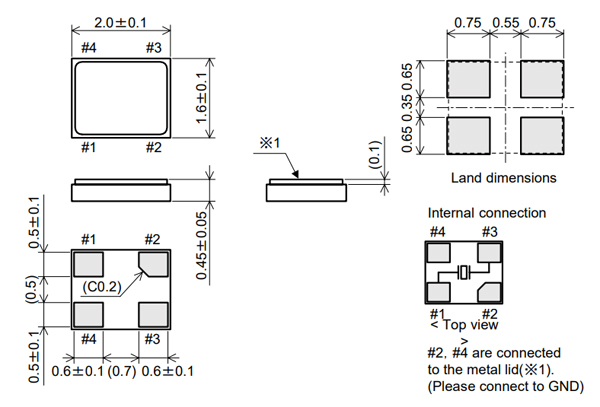

FCX-06贴片晶振外形尺寸:
FCX-06贴片晶振应用:
Mobile phone, W-LAN,Bluetooth, Tuner module
